Preference

Configure the settings for user preferences from [Preferences] menu as follows:

General

link

  • Event Logs
    The number of days to keep event logs can be specified.

  • Task Priority Settings
    Select a level of execution priority for Consolidation and Replication tasks.

    The changes made for the settings will not be applied to items after clicking [OK] in the dialog to configure the task settings for bucket/folder. Before changing the settings, please replace the order of task tabs.

  • Proxy Settings If using a proxy server please configure the settings. Proxy Server is used for update check and product activation.

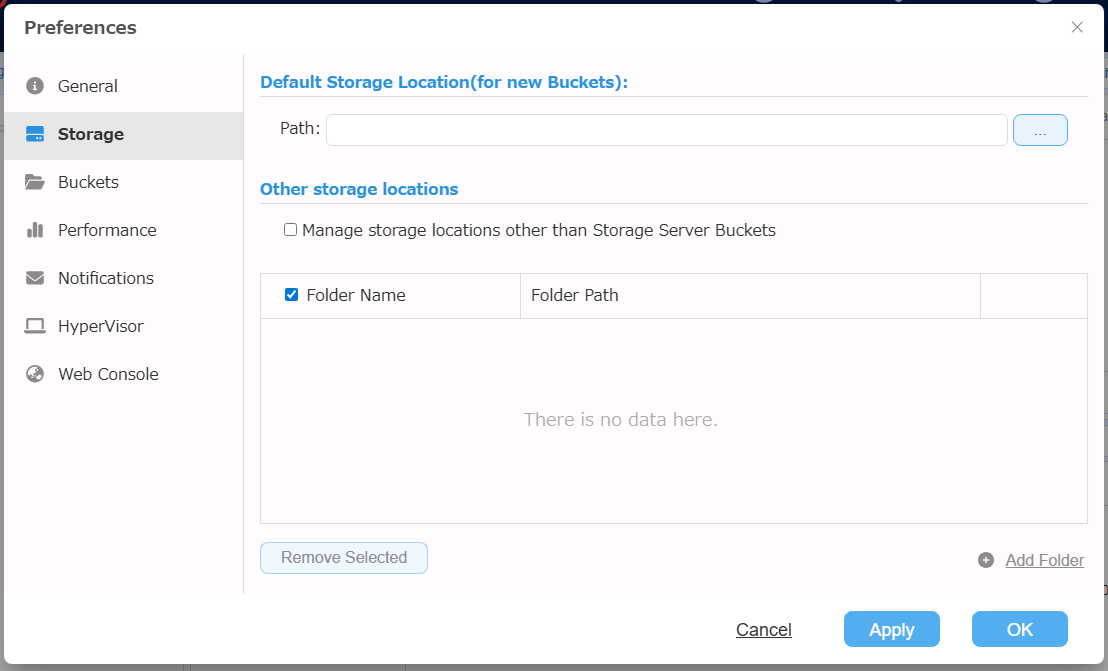

Storage

link

  • Default Storage Location (for new buckets) Please specify the path to the location of the default storage to create a bucket.

  • Other storage locations
    Check in the checkbox to [Manage storage locations other than SorageServer buckets.]

    You can add a shared folder after enabling [Manage storage locations other than SorageServer buckets] and clicking [Apply].

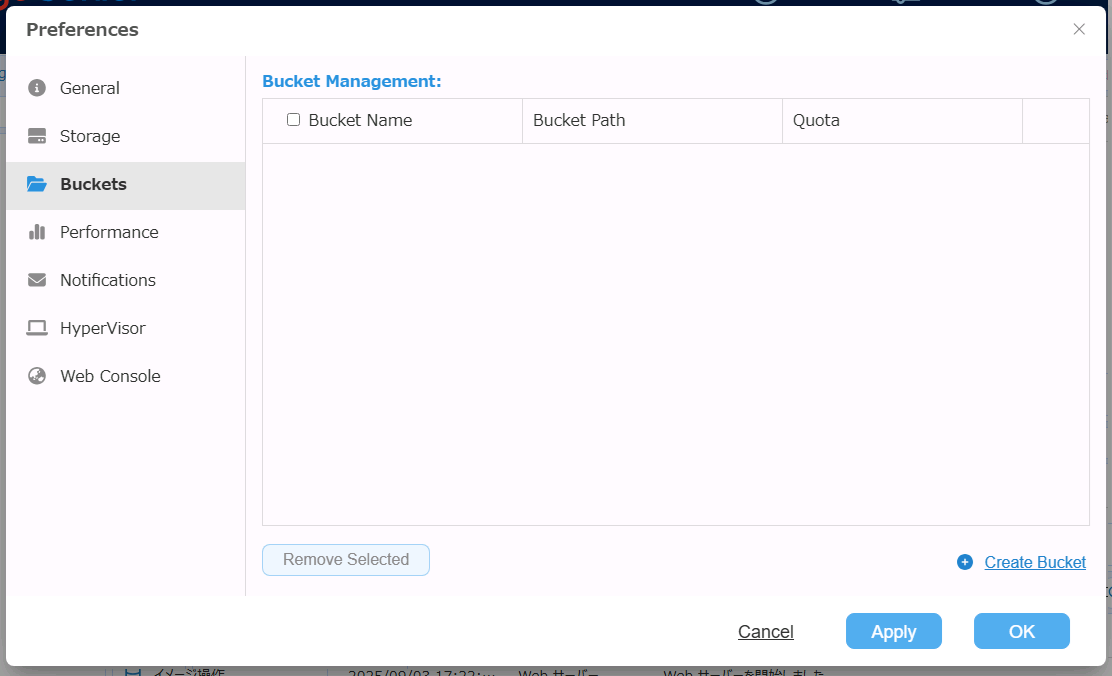

Bucket

You can add or delete a bucket.

link

Click [Add new bucket] to add a new bucket.
Please configure the following settings for the new bucket.

  • Bucket Name Bucket name is displayed when the connection from ActiveImage Protector client to this product is established. A folder defined with this name is created in bucket path.

    When a bucket is created without defining the bucket name, the new bucket is created under the name “Bucket_"."

  • Bucket path
    Please specify the path of the location to create the bucket.

    When the bucket is created without specifying the path, the bucket is configured in the path specified by selecting [Preference] - [Storage].

  • Quota Please specify the maximum limit of the disk space allocated to the bucket.

    When the used disk space exceeds the limit, the backup task for ActiveImage Protector client fails in Error -800.

  • Client quota
    Please specify the maximum limit of the disk space allocated to the client.

    When the used disk space exceeds the limit, the backup task for ActiveImage Protector client fails in Error -802.

  • Authentication Setting
    Enable [Request for authentication to access client] option to request for authentication before accessing a client.

Select a bucket and click [Delete the selected bucket] to delete the bucket.

Please be aware that you cannot undo the action of deleting an item.

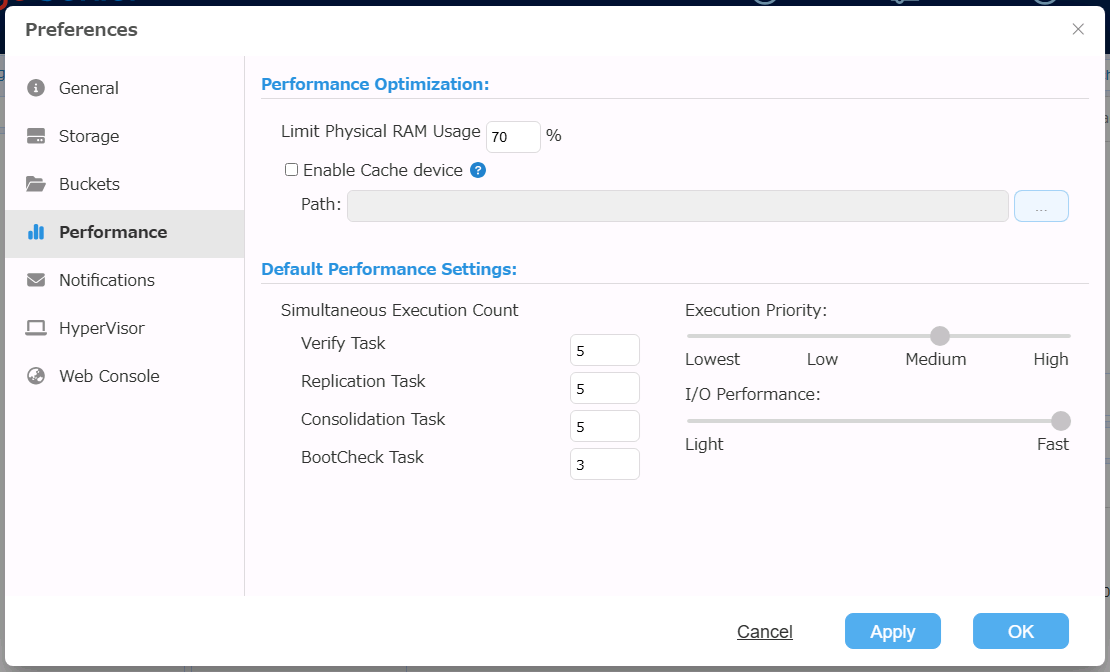

Performance

You can configure the performance settings.

link

  • Performance Optimization When some data are in wait for writing to the storage, the data in wait are evacuated to the memory space (primary cache) until the memory usage in the entire system reaches the predefined value. Once the primary cache become plentiful, only the data size written from cache to storage can be processed. As a result, the process speed on backup client slows down. The decrease in the process speed can be suppressed by deploying a cache device (secondary cache). The data received while the primary cache is plentiful will be cached in a specified device and processed in order. If the specified device is faster than network interface used for receiving data, the backup process on backup client is performed at the same level as the primary cache. Even when the provided device is not faster than the network interface, the use of a device faster than the storage on which the bucket is created enables you to suppress the decrease in the backup process speed.

  • Default Performance Setting
    You can specify the number of tasks to run in parallel for [Simultaneous Execution Count] for Verify Task, Replication Test, Consolidation Task, BootCheck Task.

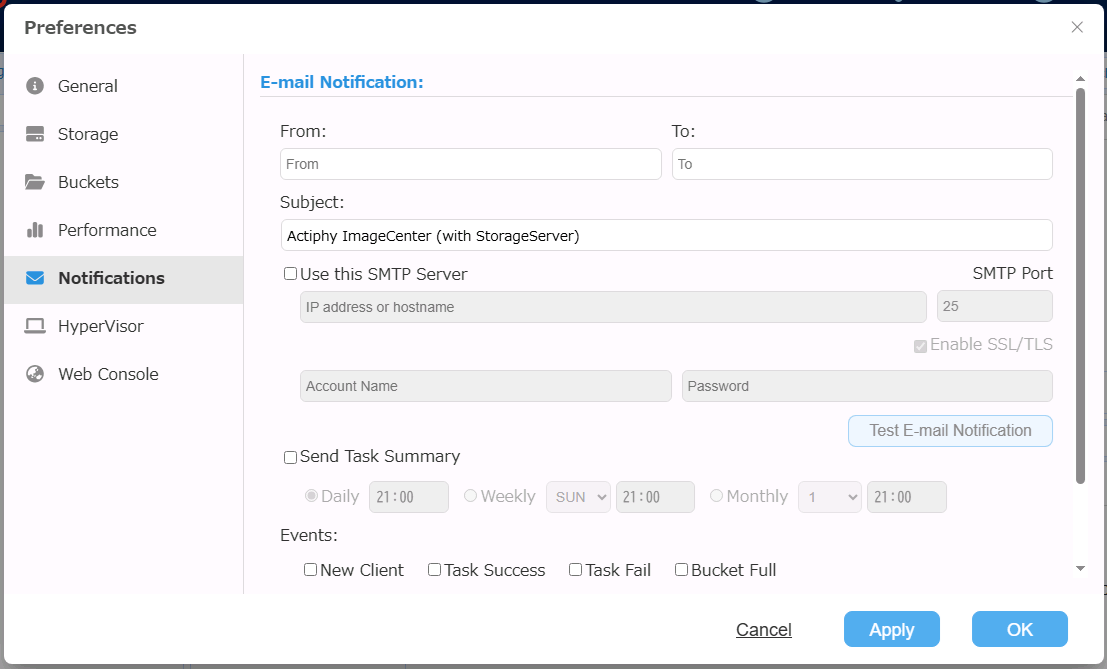

E-Mail Notification

Please configure the settings for E-Mail Notification.

link

  • E-Mail Notification Enter the sender’s E-Mail address for [From], the recipient’s E-Mail address for [To] and [Subject]. Multiple E-Mail addresses may be specified by delimiting with ‘,’.

  • Use this SMTP server Enable this option to use the specified SMTP server for E-Mail notification. If this option is not selected, E-Mail notification is sent without using SMTP server.

  • Test E-mail Notification To make sure that the settings configured for E-Mail notification are accurate, please use this option to check if the E-Mail is received by the specified recipient.

  • Send Task Summary Select this option to send task summary mail according to the schedule you specify (daily, weekly, monthly).

  • Events E-Mail notification is sent when the specified event occurs.

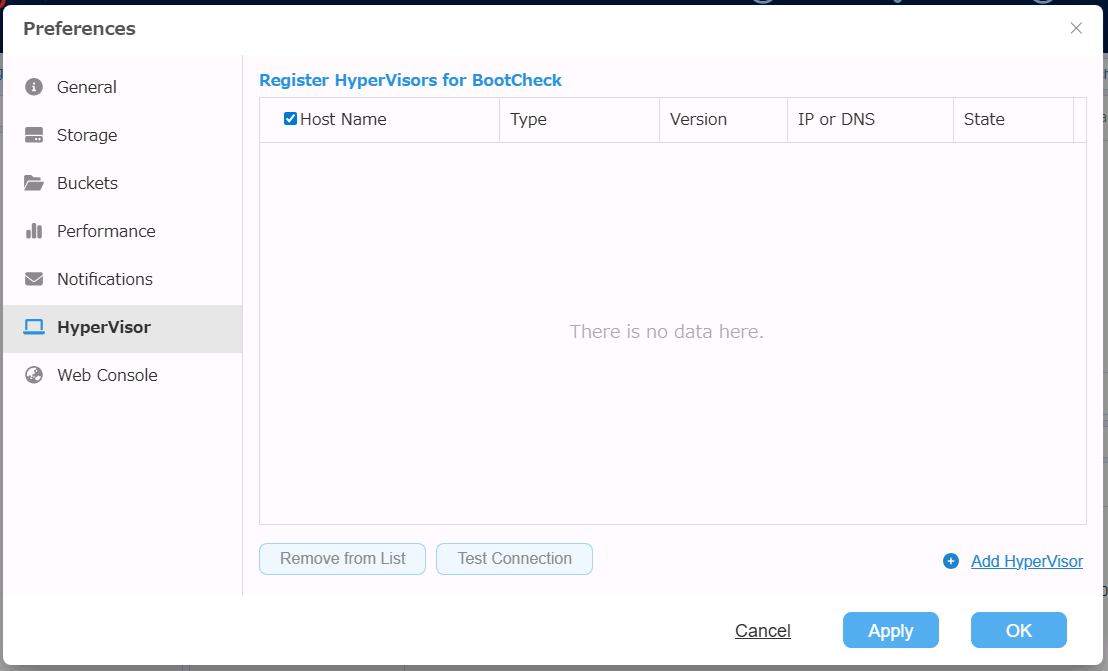

Hypervisor

You can register the hypervisor (Hyper-V) to use for BootCheck.

link

Web Console

You can configure the authentication settings to connect from a computer other than local host by using Web console. By default, the user account is [User:root / Password:root].

link
